Nasrul Halim, Nasrul Halim (2022) Password Designing Using Programmable Logic Device (PLD). Password Designing Using Programmable Logic Device (PLD).
|
Text

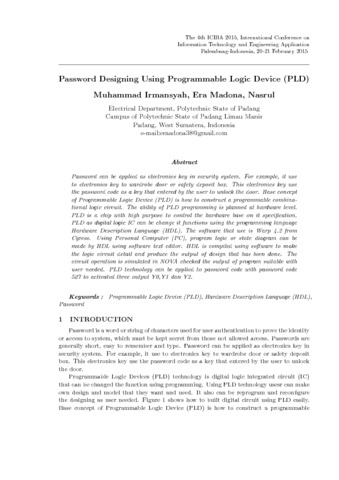

4. 20IT_Revised_Irmansyah_PoltekPadang [Password design].pdf Download (220kB) | Preview |
Abstract
Password can be applied as electronics key in security system. For example, it use to electronics key to wardrobe door or safety deposit box. This electronics key use the password code as a key that entered by the user to unlock the door. Base concept of Programmable Logic Device (PLD) is how to construct a programmable combina�tional logic circuit. The ability of PLD programming is planned at hardware level. PLD is a chip with high purpose to control the hardware base on it specification. PLD as digital logic IC can be change it functions using the programming language Hardware Description Language (HDL). The software that use is Warp 4.2 from Cyress. Using Personal Computer (PC), program logic or state diagram can be made by HDL using software text editor. HDL is compiled using software to make the logic circuit detail and produce the output of design that has been done. The circuit operation is simulated in NOVA checked the output of program suitable with user needed. PLD technology can be applied to password code with password code 527 to activated three output Y0,Y1 dan Y2.
| Item Type: | Article |
|---|---|
| Subjects: | H Social Sciences > H Social Sciences (General) |
| Divisions: | Faculty of Law, Arts and Social Sciences > School of Social Sciences |
| Depositing User: | Mr Edi Surya Negara |
| Date Deposited: | 05 Jul 2022 04:34 |
| Last Modified: | 05 Jul 2022 04:34 |
| URI: | http://eprints.binadarma.ac.id/id/eprint/17097 |
